1. Technical Parameters Table
| Inspection Item | Complete Technical Specification Data |
|---|---|

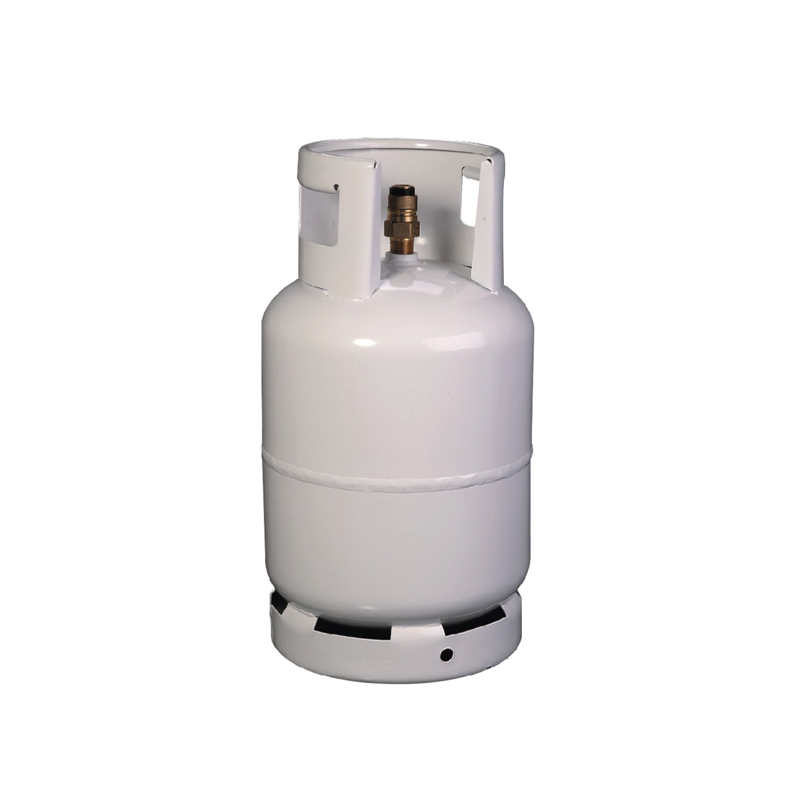

| Model Number | HR40035 |
| Applicable Medium | Liquefied Petroleum Gas (Propane & Butane Blend) |
| Rated LPG Filling Mass | 13kg / 28.7LB |
| Nominal Water Capacity | 26.5L |
| Empty Tare Weight | 10.8kg |
| Overall Full Height | 522mm |
| Cylinder Body Outer Diameter | 312mm |
| Standard Wall Thickness | 2.5mm |
| Design Working Pressure | 2.5 MPa (25 Bar) |
| Hydrostatic Test Pressure | 3.75 MPa (37.5 Bar) |
| Minimum Burst Pressure | ≥7.5 MPa (75 Bar) |
| Molding Technology | Integral Hot Spinning Seamless Forming |
| Surface Treatment | SA2.5 Shot Blasting + Anti-rust Primer + Weather-resistant Outdoor Topcoat |
| Valve Connection Standard | Universal International LPG Cylinder Valve Interface, matched with reliable explosion-proof gas cylinder valve |
| Global Compliant Safety Standards | ISO4706, CE, DOT, GB5842 |
| Design Service Life | 15 Years |
| Factory Inspection Rule | 100% Hydraulic Pressure Test & Air Tightness Leak Test for every standard export propane gas cylinder before shipment |
2. Product Advantages
Seamless One-piece Hot Spinning Body Structure
The whole cylinder body is integrally hot-spun without any welding seams, completely eliminating potential gas leakage risks caused by welding defects. It delivers outstanding structural stability and reliable explosion-proof performance under long-term pressure service, making it a trustworthy standard export propane gas cylinder for global buyers.
Original Certified HP295 Pressure Vessel Steel Raw Material
Adopts qualified HP295 special pressure vessel steel with stable internal mechanical texture. It has excellent impact resistance, compression resistance and salt-fog corrosion resistance, fully complying with worldwide mainstream gas cylinder safety certification standards, ideal to build durable large capacity commercial LPG tank solutions.
Multi-layer Anti-corrosion Protective Coating System
Multi-step professional anti-rust painting process effectively resists erosion of high temperature, heavy rain and humid coastal saline environments, preventing paint peeling and rust spots to greatly extend the service cycle of gas cylinders, perfect for outdoor placed large capacity commercial LPG tank.
Full Lifecycle Traceable Strict Quality Control Flow
Every finished cylinder passes multi-round appearance screening, hydraulic pressure test and air tightness leak test one by one. A unique laser-marked serial number is printed on each bottle to realize full lifecycle quality tracking for every standard export propane gas cylinder.
Global Universal Accessory Matching Compatibility
Standardized valve mouth, lifting protective guard and bottom foot ring design fit most mainstream LPG valves, explosion-proof gas cylinder valve, anti-collision protective caps and transport trolleys sold globally, easy for daily installation, replacement and maintenance.
Customized Regional Export Certification Support
Our technical team can apply for exclusive regional safety certifications to meet import customs inspection requirements of Southeast Asia, Middle East, Africa, Europe, South America and Oceania markets for bulk orders of standard export propane gas cylinder and large capacity commercial LPG tank.
3. Application Scenarios
Household Daily Use: Family kitchen cooking, indoor space heating, domestic hot water supply
Catering Industry: Restaurants, hotel back kitchens, roadside food stalls, mobile food trucks, matched with explosion-proof gas cylinder valve for safe catering operation
Light Industrial Use: Small factory heating, metal welding & cutting, portable boiler fuel supply, common industrial application of standard export propane gas cylinder
Outdoor Activities: Camping, caravan travel, outdoor barbecue, temporary gas supply for construction sites, lightweight portable alternative to large capacity commercial LPG tank
Commercial Gas Distribution: Gas retail stations, bottled gas storage warehouses, residential community centralized gas supply projects, mass supply of standard export propane gas cylinder and large capacity commercial LPG tank
4. Customization Services
Dimension & Capacity Customization
Adjust cylinder height, outer diameter and water capacity according to local market demand of buyers, support customized size for both small portable bottles and large capacity commercial LPG tank.
Surface Brand Customization
Custom spray paint colors as your request; silk-screen print customer’s exclusive brand LOGO, enterprise name, safety warning labels and contact information on the cylinder body of your standard export propane gas cylinder.
Supporting Accessory Matching Customization
Custom matched safety valves, explosion-proof gas cylinder valve, rubber anti-collision rings, valve protective caps, portable transport trolleys and spare sealing gaskets.
Targeted Regional Certification Application
Apply for special regional certificates (CE, DOT, ISO4706 and local national standards) based on import policies of destination countries for all standard export propane gas cylinder and large capacity commercial LPG tank products.
Export Packaging Customization
Provide standard fumigation-free export wooden pallets wrapped with waterproof stretch film; customized solid wooden box packaging for small trial sample orders of standard export propane gas cylinder.
Complete Technical Document Support
Supply customized CAD product drawings, factory batch inspection reports, material test certificates and full sets of supporting customs clearance technical files for smooth clearance of large capacity commercial LPG tank shipments.
5. Trade Information
Manufacturer & Authorized Exporter: Qingdao Evergreen Import and Export Co., Ltd.
MOQ: Negotiable; small trial sample orders are fully acceptable
Mass Production Lead Time: 7–15 working days after deposit confirmation
Accepted Payment Terms: T/T, L/C at sight, other flexible negotiable terms
Loading Port: Qingdao Port, China
Standard Export Packaging: Fumigation-free wooden pallet + waterproof stretch film wrapping
Available Delivery Modes: Ocean freight, land truck transportation, combined multimodal logistics
Main Export Markets: Southeast Asia, Middle East, Africa, South America, Europe, Oceania
Main Product Line: standard export propane gas cylinder, large capacity commercial LPG tank, explosion-proof gas cylinder valve and matched LPG accessories
6. Purchasing Frequently Asked Questions
Q1: What safety certificates can you offer for HR40035 13kg LPG cylinders?
A: We can provide ISO4706 international standard certificate, CE certification, DOT certification and GB national safety certificate. We can also apply for special regional certifications in line with the import inspection regulations of your target market for standard export propane gas cylinder and large capacity commercial LPG tank.
Q2: Can I print my own brand logo and company information on the cylinder surface?
A: Yes. We support customized silk-screen printing of exclusive brand logos, brand names, safety warning texts and contact details, and the spray paint color can be adjusted according to your specific requirements for your branded standard export propane gas cylinder.
Q3: What is the service life and regular inspection cycle of HR40035 gas cylinder?
A: The design service life of HR40035 cylinder is 15 years. Mandatory hydraulic safety inspection is required every 4 years during normal service to guarantee safe filling and daily usage of the cylinder equipped with explosion-proof gas cylinder valve.
Q4: Is sample order available before bulk mass purchase?
A: Sample orders are fully supported. Customers only need to cover sample production cost and international shipping fee, and samples can be finished and delivered within 3–5 working days to test standard export propane gas cylinder and explosion-proof gas cylinder valve quality.
Q5: How will you handle production-caused quality defects after goods delivery?
A: All finished cylinders pass 100% air tightness and hydraulic pressure tests before shipment. If any production-related quality problem occurs, we provide free replacement of defective goods and bear the corresponding logistics costs for every standard export propane gas cylinder.
Q6: Can you supply complete sets of documents for customs clearance?
A: Definitely. We can provide commercial invoice, packing list, certificate of origin, factory batch inspection report, product safety certification and all supporting customs clearance documents for smooth customs clearance worldwide for large capacity commercial LPG tank bulk shipments.
Q7: Is HR40035 compatible with mainstream LPG valves in global markets?
A: HR40035 adopts a universal international valve interface that matches most mainstream LPG valves around the world. Custom special explosion-proof gas cylinder valve can also be manufactured according to your special technical requests for your standard export propane gas cylinder and large capacity commercial LPG tank.
